Ceramic Fiber Ropes Round and Square
Ceramic Fiber Ropes are high-temperature resistant sealing and insulation materials manufactured from premium-grade refractory ceramic fibers. Engineered for demanding thermal environments, these ropes exhibit excellent resistance to extreme heat, thermal shock, chemical attack, and mechanical wear.
The ropes are reinforced with high-strength carrier materials such as fiberglass filaments or stainless steel wire to improve tensile strength and durability while maintaining flexibility. Designed for continuous exposure to elevated temperatures up to 1260°C, Ceramic Fiber Ropes are widely used in industrial sealing, gasketing, and insulation applications where conventional materials fail.
Their low thermal conductivity, excellent dimensional stability, and resistance to oxidation make them ideal for energy-efficient thermal management systems.
Specifications
- Types:
- Ceramic Fiber Round Rope
- Ceramic Fiber Square Rope
- Maximum Operating Temperature: 1260°C
- Density: 550 kg/m³
- Standard Dimensions:
- Diameter/Size Range: 6 mm to 50 mm
- Customization:
Custom lengths and sizes available to meet specific industrial requirements.
Contact Us
Phone: 0722 401 175
Email: info@insulationworldkenya.co.ke / insulationworldkenya@gmail.com
Location: Nairobi Industrial Area, Along Old Enterprise Rd, Inside Hema House
Description
Ceramic Fiber Ropes are high-temperature resistant sealing and insulation materials manufactured from premium-grade refractory ceramic fibers. Engineered for demanding thermal environments, these ropes exhibit excellent resistance to extreme heat, thermal shock, chemical attack, and mechanical wear.
The ropes are reinforced with high-strength carrier materials such as fiberglass filaments or stainless steel wire to improve tensile strength and durability while maintaining flexibility. Designed for continuous exposure to elevated temperatures up to 1260°C, Ceramic Fiber Ropes are widely used in industrial sealing, gasketing, and insulation applications where conventional materials fail.
Their low thermal conductivity, excellent dimensional stability, and resistance to oxidation make them ideal for energy-efficient thermal management systems.
Specifications
- Types:
- Ceramic Fiber Round Rope
-
- Ceramic Fiber Square Rope
- Maximum Operating Temperature: 1260°C
- Density: 550 kg/m³
- Standard Dimensions:
- Diameter/Size Range: 6 mm to 50 mm
- Customization:
Custom lengths and sizes available to meet specific industrial requirements.

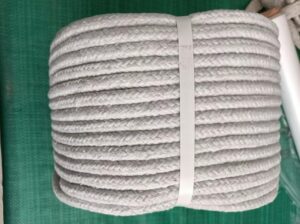

Ceramic Fiber Round Rope – Technical Overview
Ceramic Fiber Round Rope is manufactured by braiding or twisting ceramic fiber yarns into a cylindrical profile. This construction provides uniform compressibility and excellent flexibility, making it suitable for dynamic sealing applications.
Key Properties:
- Uniform circular cross-section for even sealing pressure
- High flexibility for easy installation in irregular geometries
- Excellent resistance to thermal cycling and shock
- Low heat storage and efficient insulation performance
- Reinforced structure for enhanced tensile strength
This type is particularly effective in applications requiring tight sealing in circular or curved joints.
Ceramic Fiber Square Rope – Technical Overview
Ceramic Fiber Square Rope is produced through a specialized braiding process that forms a dense, square cross-section. This geometry provides superior surface contact and sealing efficiency, especially in flat or rectangular sealing areas.
Key Properties:
- High packing density for improved sealing performance
- Greater surface contact area compared to round ropes
- Excellent structural integrity under compression
- High resistance to abrasion and compression
- Stable performance under continuous high-temperature exposure
Square ropes are ideal for static sealing applications where maximum contact and minimal leakage are required.
Differences Between Round and Square Ceramic Fiber Ropes
| Feature | Round Rope | Square Rope |
|---|---|---|
| Shape | Cylindrical | Square |
| Flexibility | Higher | Moderate |
| Sealing Type | Dynamic and curved joints | Static and flat surfaces |
| Contact Area | Point/line contact | Larger surface contact |
| Compression | Even distribution | Higher packing density |
Applications
Ceramic Fiber Ropes are extensively used in high-temperature industrial environments, including:
- Furnace door seals and expansion joints
- Boiler and kiln sealing systems
- High-temperature gasket applications
- Heat treatment equipment
- Coke ovens and foundries
- Glass and ceramics manufacturing industries
- Petrochemical and power generation plants
- Pipe wrapping and thermal insulation sealing
Round Rope Applications:
- Circular flange sealing
- Valve and pump packing
- Flexible joint insulation
Square Rope Applications:
- Furnace and oven door seals
- Static flange sealing
- Rectangular groove packing
Why Choose Insulation World Kenya Limited
Insulation World Kenya Limited is a leading provider of advanced thermal insulation materials tailored for industrial performance and reliability. Our Ceramic Fiber Ropes are manufactured to meet stringent quality and performance standards, ensuring optimal results in high-temperature applications.
We offer:
- High-quality, industry-grade insulation materials
- Technical expertise and product knowledge
- Consistent product performance under extreme conditions
- Customization options to suit specialized applications
- Competitive pricing aligned with quality assurance
Our commitment is to deliver dependable insulation solutions that enhance operational efficiency, safety, and longevity of industrial systems.
