Ceramic Fiber Cloth | Plain And With Foil on One Side
Ceramic Fiber Cloth is a high-performance woven textile manufactured from high-purity refractory ceramic fibers. Designed to withstand extreme temperatures and harsh industrial environments, it provides exceptional thermal insulation, low thermal conductivity, and excellent resistance to thermal shock, chemical corrosion, and mechanical stress.
This material is reinforced with high-temperature-resistant yarns (such as fiberglass or stainless steel wire) to enhance tensile strength and durability. Ceramic Fiber Cloth is widely used in applications requiring reliable heat containment, energy efficiency, and fire protection.
Specifications
- Types:
- Ceramic Fiber Cloth (Plain)
- Ceramic Fiber Cloth (Aluminium Foil Laminated on One Side)
- Maximum Operating Temperature: 1260°C
- Density: 550 kg/m³
- Standard Dimensions:
- Length: 30 meters
- Width: 1 meter
- Thickness: 3 mm
- Customization:
Custom lengths and specifications available upon request.
Contact Us
Phone: 0722 401 175
Email: info@insulationworldkenya.co.ke / insulationworldkenya@gmail.com
Location: Nairobi Industrial Area, Along Old Enterprise Rd, Inside Hema House
Description
Ceramic Fiber Cloth is a high-performance woven textile manufactured from high-purity refractory ceramic fibers. Designed to withstand extreme temperatures and harsh industrial environments, it provides exceptional thermal insulation, low thermal conductivity, and excellent resistance to thermal shock, chemical corrosion, and mechanical stress.
This material is reinforced with high-temperature-resistant yarns (such as fiberglass or stainless steel wire) to enhance tensile strength and durability. Ceramic Fiber Cloth is widely used in applications requiring reliable heat containment, energy efficiency, and fire protection.
Specifications
- Types:
- Ceramic Fiber Cloth (Plain)
-
- Ceramic Fiber Cloth (Aluminium Foil Laminated on One Side)
- Maximum Operating Temperature: 1260°C
- Density: 550 kg/m³
- Standard Dimensions:
- Length: 30 meters
- Width: 1 meter
- Thickness: 3 mm
- Customization:
Custom lengths and specifications available upon request.

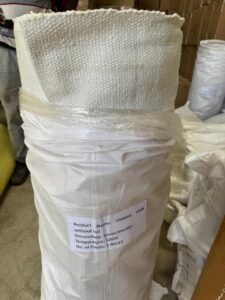

Ceramic Fiber Cloth (Plain) – Technical Overview
Ceramic Fiber Plain Cloth is produced by weaving ceramic fiber yarns into a flexible, lightweight fabric. It retains excellent insulation properties even at elevated temperatures up to 1260°C.
Key Properties:
- Low thermal conductivity
- Excellent resistance to thermal shock
- High tensile strength with reinforcement
- Good chemical resistance
- Non-combustible and flame-resistant
This version is ideal for applications where flexibility, breathability, and direct heat resistance are required without reflective surfaces.

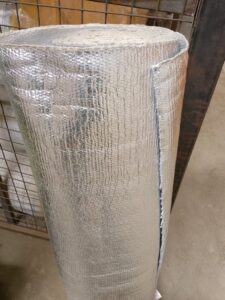

Ceramic Fiber Cloth with Aluminium Foil (One Side) – Technical Overview
This variant consists of ceramic fiber cloth laminated with a high-purity aluminium foil layer on one side. The foil acts as a radiant heat barrier, significantly improving thermal reflectivity and reducing heat transfer.
Key Properties:
- Enhanced radiant heat reflection
- Improved resistance to heat loss
- Acts as a vapor and gas barrier
- Maintains structural integrity at high temperatures
- Increased durability in harsh environments
The aluminium foil layer makes this type particularly suitable for applications where both insulation and heat reflection are critical.
Differences Between Plain and Foil-Laminated Ceramic Fiber Cloth
| Feature | Plain Ceramic Fiber Cloth | Foil-Laminated Ceramic Fiber Cloth |
|---|---|---|
| Surface | Woven fiber only | Aluminium foil on one side |
| Heat Reflection | Moderate | High (due to reflective foil) |
| Vapor Barrier | No | Yes |
| Flexibility | Higher | Slightly reduced |
| Applications | General insulation | High-radiation heat environments |
Applications
Ceramic Fiber Cloth is widely utilized across multiple industrial sectors, including:
- Furnace and kiln insulation linings
- Expansion joint sealing and wrapping
- Fire curtains and fire protection systems
- Welding blankets and heat shields
- Pipe and duct insulation
- Gasket and sealing applications
- Power generation and petrochemical industries
- Automotive and marine heat protection systems
The foil-laminated variant is especially suitable for:
- Radiant heat shielding
- Insulation in confined spaces
- Energy conservation systems
Why Choose Insulation World Kenya Limited
Insulation World Kenya Limited is a trusted supplier of high-quality thermal insulation materials engineered to meet demanding industrial standards. Our Ceramic Fiber Cloth products are sourced and manufactured to ensure:
- Consistent high-temperature performance
- Strict quality control and material integrity
- Technical expertise and product guidance
- Availability of customized solutions to suit specific project requirements
- Competitive pricing without compromising quality
We are committed to supporting industries with reliable insulation solutions that enhance efficiency, safety, and durability.
